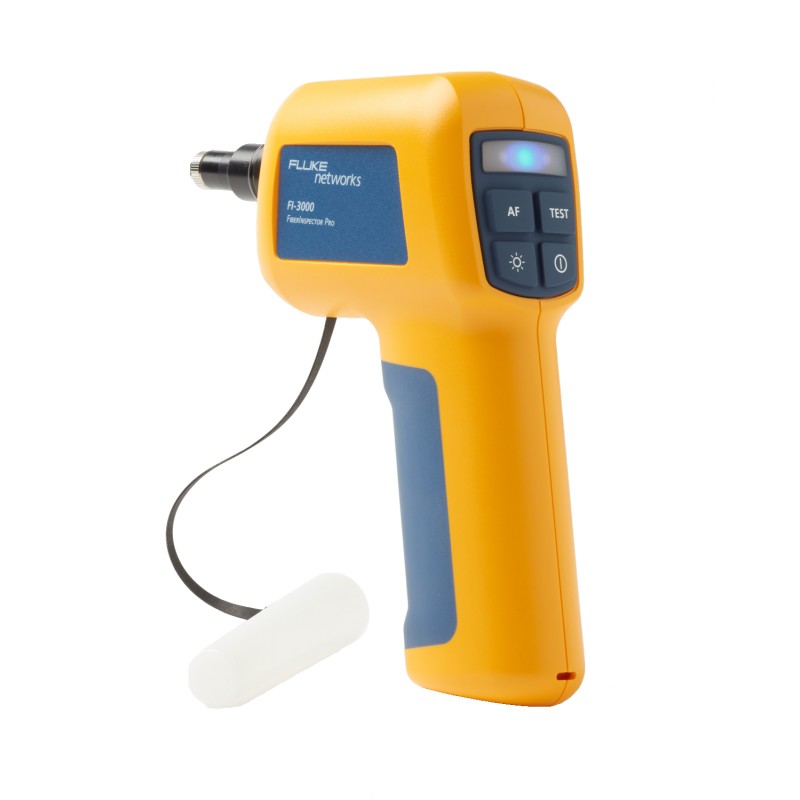

The FI-3000 FiberInspector Pro offers an extensive feature set that makes testing MPO fiber trunks easy and efficient. The multiple camera design provides an instant Live View with simple touchscreen gestures to move from full trunk to individual endfaces in real time. Automated pass/fail results in seconds. Store results on your phone and share them through text messages or email or use the industry-leading LinkWare platform to store complete project reports including copper, fiber loss, OTDR, and endface images. Compact, ergonomic design with autofocus makes it comfortable and fast even when you’re testing hundreds of cables or ports.
- Total endface visibility with Live View from full trunk to individual endface
- Integrates with Versiv / LinkWare for simple operation and documentation or with mobile phones for testing and sharing
- Automated pass/fail results in seconds
- Multiple Autofocus/Autocentering Camera design for real time imaging
- Rugged, ergonomic design with convenient holster
- Supports one or two rows of 8,12, or 16 UPC or APC connectors as well as single fibers
- Interchangeable tips support one or two rows of 8, 12, or 16 UPC or APC connectors as well as single fibers*
- PortBright™ illumination for dark and crowded patch panels
- Protective cover with tether
*Single fiber support available second half 2019

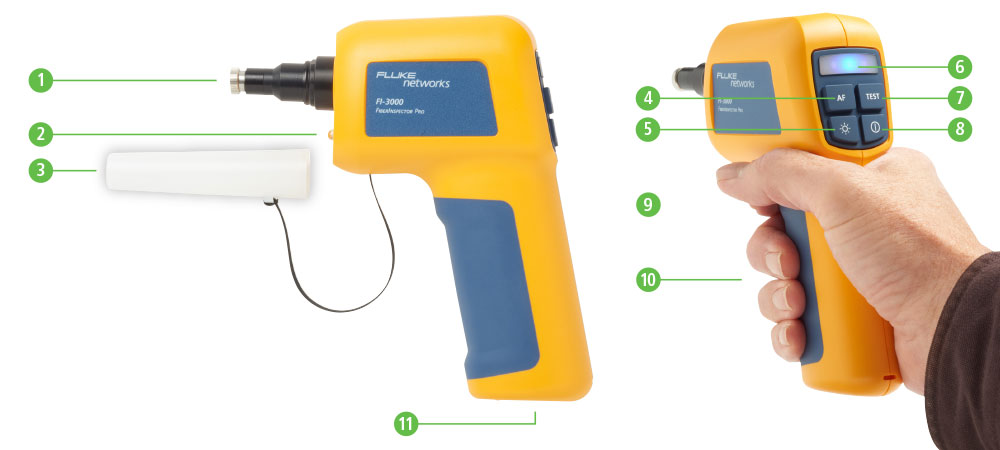

- AutoFocus Control
- PortBright on/off
- LED's indicate PASS/FAIL and Wi-Fi connection
- Start an automated test without reaching for your Versiv or smartphone
- Auto-off saves battery life
- Ergonomic design comfortable for inspecting cables or ports
- Rugged design for constant field usage
- USB port for charging Li-Ion battery and connecting to Versiv
| Altitude | Operating: 4,000 m (3,200 m with AC adapter), Storage: 12,000 m |
| Battery type | Lithium-ion; 10.8 hour life |
| Light source | LED, >100,000 hr life |
| Resolution | 1 μm |
| Safety | IEC 61010-1: Pollution degree 2 |
| Shock | 1 meter drop test |
| Temperature range | Operating: -10° C to +45° C (+14° F to +113° F), Storage: -10° C to +60° C (+14° F to +140° F) |
| Weight | 11.5 oz (326 gm) (with dust cap and no adapter tip) |
| Dimensions | 6.625 in x 5.375 in x 2.125 in (168 mm x 137 mm x 54 mm) (with no dust cap or adapter tip) Length with dust cap: 7.5 in (191 mm) |
| Vibration | 2 g, 5 Hz to 500 Hz |
| EMC | IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1, CISPR 11: Group 2, Class A, USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules. |
| Humidity range | Operating: 0 % to 95 % (32° F to 95° F, 0° C to 35° C) RH non-condensing, Storage: 0 % to 95 % (95° F to 113° F, 35° C to 45° C) RH non-condensing |
| Power adapter | Input: 100 to 240 VAC ±10 %, 50/60 Hz, Output: 15 VDC, 2 A maximum, Class II |
Similar products
-
Fluke CertiFiber Pro
FI-3000 FiberInspector Pro
The FI-3000 FiberInspector Pro is the industry’s most efficient MPO inspection solution.
00A-500-010-25
Limited Stock our testers are often on loan and may not be available for immediate collection or delivery.
Please contact us to check stock and availability
£270.00
£225.00 Ex VAT.
